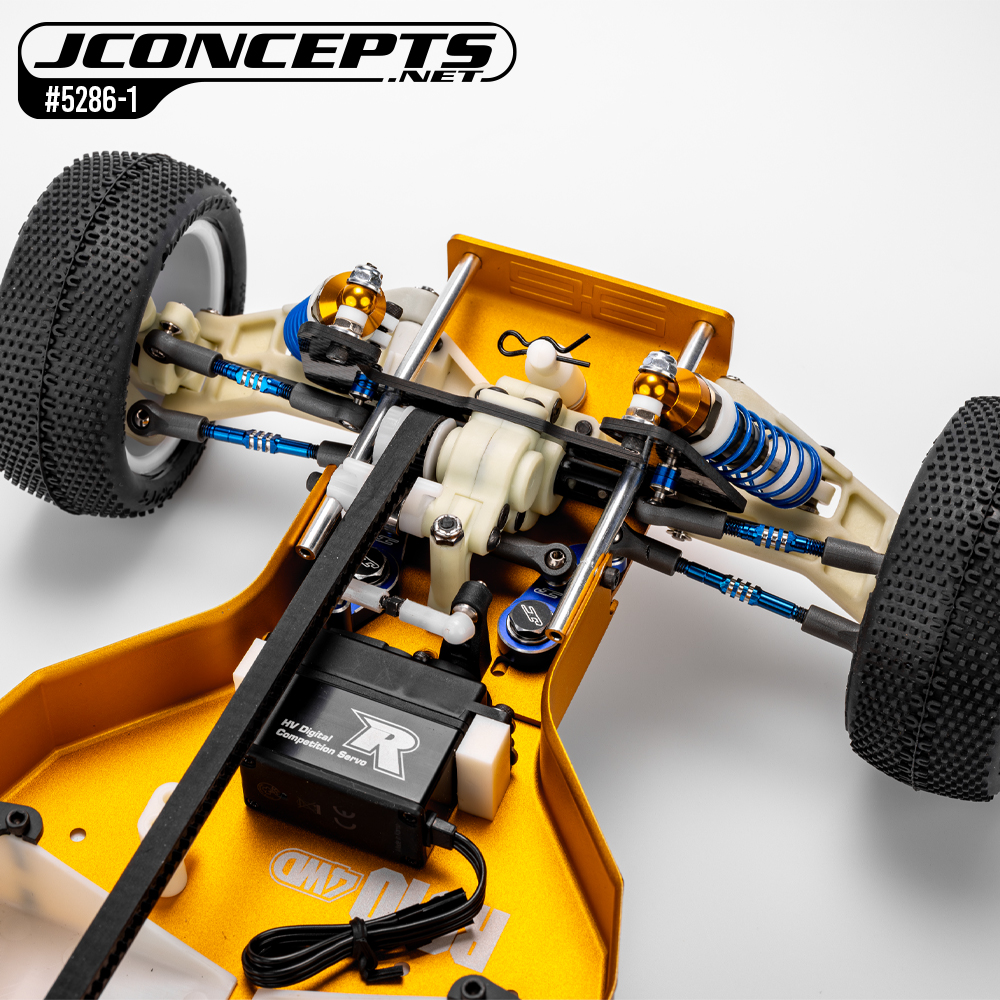

One of the best hop-ups that can be made to the RC10 and RC10T 4wd is to update the steering bellcranks with a more durable design. JConcepts has evaluated the options and built an all-aluminum design bringing the driving bell-crank into a one-piece and solid design, increasing steering response and feel. The idler bell-crank sports a beefy and similar design giving the vehicle a symmetrical feel. The parts are available in blue or black anodizing and feature silver chamfered edged highlighting and laser-etched JC logo for brand authenticity.
The bellcranks are bearing supported with heavy-duty flanged bearings and include threaded aluminum steering posts with etched JC logo for an ultra-snug fit and finish. JConcepts has also went the extra mile and included 8/32 x 5/16” FHCS screws in titanium which thread into the bottom of the chassis and ultimately the steering posts for a complete design. Keep in mind the RC10 and RC10T 4wd uses 3mm x 5.5 ball-studs in each area of the steering assembly except for the high post to connect the steering servo tie-rod, that item uses a 4-40 ball-end.
Features:
• Available in blue or black anodized aluminum
• CNC machined aluminum bellcranks with anodized finish
• CNC machined aluminum steering posts and shims
• Improves steering responsiveness and rigidity
• Includes 8/32 x 5/16 Titanium FHCS screws
• JConcepts design

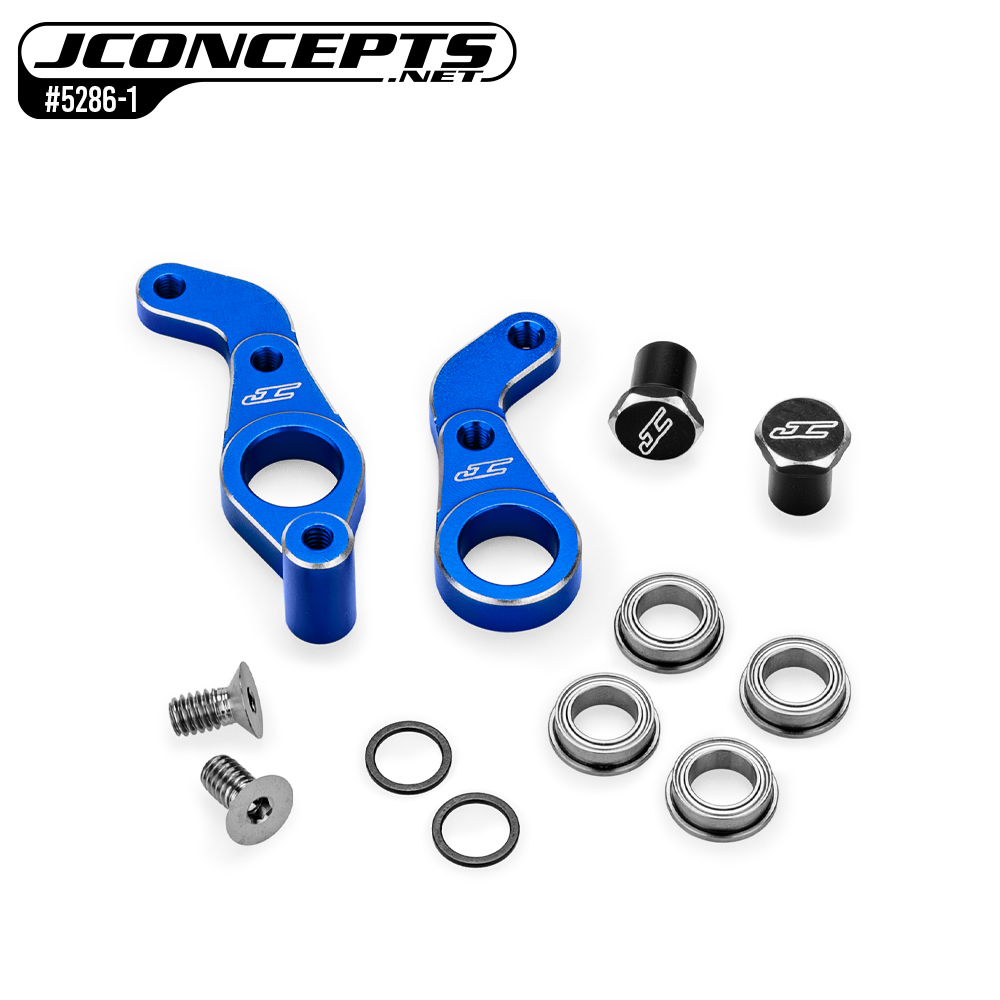

JConcepts RC10 | RC10T 4wd aluminum steering bellcrank assembly, blue
Part# 5286-1
UPC Code – 845937040282
Retail price – $45.00
Map price – $38.25
(Fits – RC10 and RC10T 4wd)
JConcepts RC10 | RC10T 4wd aluminum steering bellcrank assembly, black
Part# 5286-2
UPC Code – 845937040299
Retail price – $45.00
Map price – $38.25
(Fits – RC10 and RC10T 4wd)
